$ whois Phil Coval

  • Software Engineer from Rennes, France
  • Opensource Contributor, Mozilla Rep (IoT)
  • Involved in industry's OSS:
    • Tizen (Intel), Yocto, IoTivity (Samsung)
  • Contact: https://purl.org/rzr/ (@RzrFreeFr)
    • Presentations, Videos, Social…
    • Currently available for cooperation

Disclaimer

  • This talk is not about:
    • State of the art in Robotics
    • Hard real time on critical systems
  • It's about experimenting "Web of Twins"

Do NOT reproduce in a critical context

Challenge

  • Let's build a Robot
    • running on JavaScript
    • developed/simulated on Linux
    • deployed to MCU supporting NuttX
  • Target ST Nucleo-F767ZI board
  • Controlled from applications
    • from IoT gateway
    • from VR world (Digital Twin)

MeArm robotic arm




NuttX Operating System

  • RTOS Committed to comply standards
    • POSIX, ANSI C
    • File based IO (/dev), BSD sockets (uIP)
  • Released by Gregory Nutt in 2007
    • incubated by Apache Foundation
    • Base of derived projects:
      • TizenRT, PX4, Sony Spresense

STM32 Microcontroller

  • Requirements:
    • IO: 4+ PWM signals (Hardware)
    • Connectivity (Ethernet)
    • Memory: ~200K For JS runtime and app
  • Nucleo F767ZI board from ST
    • STM32F7 is a good candidate
      • Cortex-M7 (Compat. M4 / STM32F4)
      • RAM: 320 KB, Flash: 2 MB
    • IO: Nucleo-144 Pins

Nucleo F746ZG

STM32F7 NuttX port

  • NuttX only supported STM32F7 CPU
  • Committed support for Nucleo-F767ZI board
  • Mapping inspired by STM32F103:
    • Feat: GPIO, ADC, PWM, ROMFS…
  • Released in nuttx-7.31

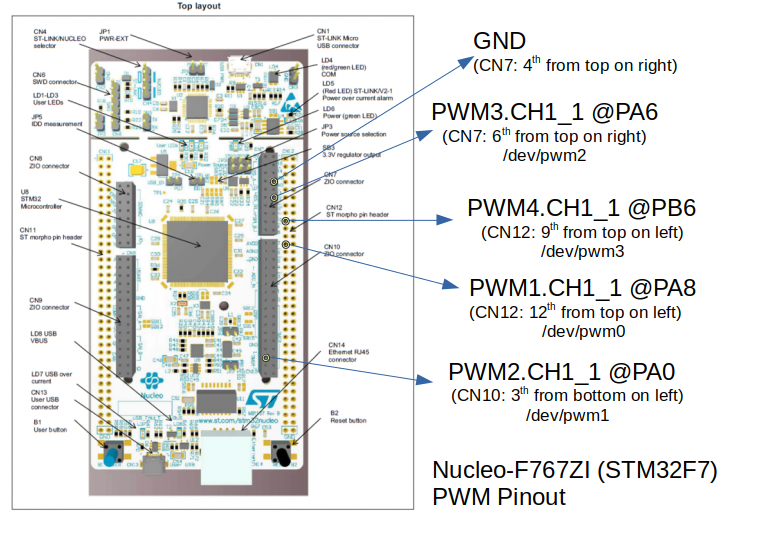

Pin out


PWM Signal

Scripting MCUs

  • Low level vs High level programming
    • Isolate applications (security framework)
    • Faster to develop, deploy
  • JavaScript on the Web and beyond

IoT.js : JavaScript runtime

  • Use JerryScript interpreter (ES 5.1)
  • Low footprint: Flash=180+KB RAM=26KB
  • Built in Modules:
    • I/O: GPIO, ADC, PWM, I2C, SPI, UART
    • Net: IP, HTTP, MQTT, WS, BLE, DNS
    • Sys: FS/ROM, Crypto…
  • External JS modules
  • Support: Linux, Tizen, NuttX, TizenRT

IoT.js and NuttX

  • IoT.js hosted outside NuttX's repo
  • can be integrated as external app
    • build using python scripts (ask me how)
  • Supported Platforms:
  • JS Scripts stored on ROMFS
    • Start "iotjs example.js" from nsh after DHCP

IoT.js contribution

  • Committed stm32f7nucleo native module
    • inspired by ref board SMT32F4 discovery
  • Initialize I/O: ADC, GPIO, PWM, TIM
    • using NuttX API for STM32
  • Extra iotjs_modules:
    • iotjs-express for REST API
    • webthing-iotjs for describing resources

Web App

WebThings

  • Mozilla IoT smart-home platform
    • with privacy by design
    • inspired by W3C WebOfThings (WoT)
  • Framework to build webthings
    • Mozilla IoT schema (in JSON)
    • Supports: Node, Python, Rust, Arduino…
    • webthing-iotjs for IoT.js (ported from Node.js)
  • Mozilla WebThings gateway
    • UI to control webthings from browser

WebThings REST API

$ curl http://192.168.0.42:8888
  { (...) "properties":{"arm":{
   "type":"number",
   "minimum":-90,"maximum":90,
   "description":"Rotary actuator on /dev/pwm2" (...)
   "links":[{"rel":"property","href":"/properties/arm" (...)

$ curl http://192.168.0.42:8888/properties
  {"torso":0,"shoulder":0,"arm":0,"hand":0}

$ curl -H "Content-Type: application/json" \
  -X PUT --data '{"arm": 42}' \
  http://192.168.0.42:8888/properties/arm
  {"arm":42}

Web of Twins Robot

.

Web of Twins demo

Summary

  • Robot is composed of 4 servo motors
    • controlled by 4 PWM signals
    • from MCU STM32F7 Nucleo144 Board
  • JS Application run by IoT.js:
    • interpreted by JerryScript
    • on top of NuttX OS
    • uses built in modules: HW, IO, Net
    • Along iotjs-module's webthing-iotjs:
      • exposes Motors angles using HTTP/REST
      • generates control signals (PWM)

Resources

https://nuttx.events


https://purl.org/rzr/

  • Thanks:
    • Alan, Alin, Greg and NuttX community !
    • Apache, Mozilla, ST, Samsung-OSG…
  • https://github.com/rzr/rzr-presentations
  • License: CC-BY-SA-4.0 ~RzR 2020
  • Copyrights belong to their respective owners
